Description

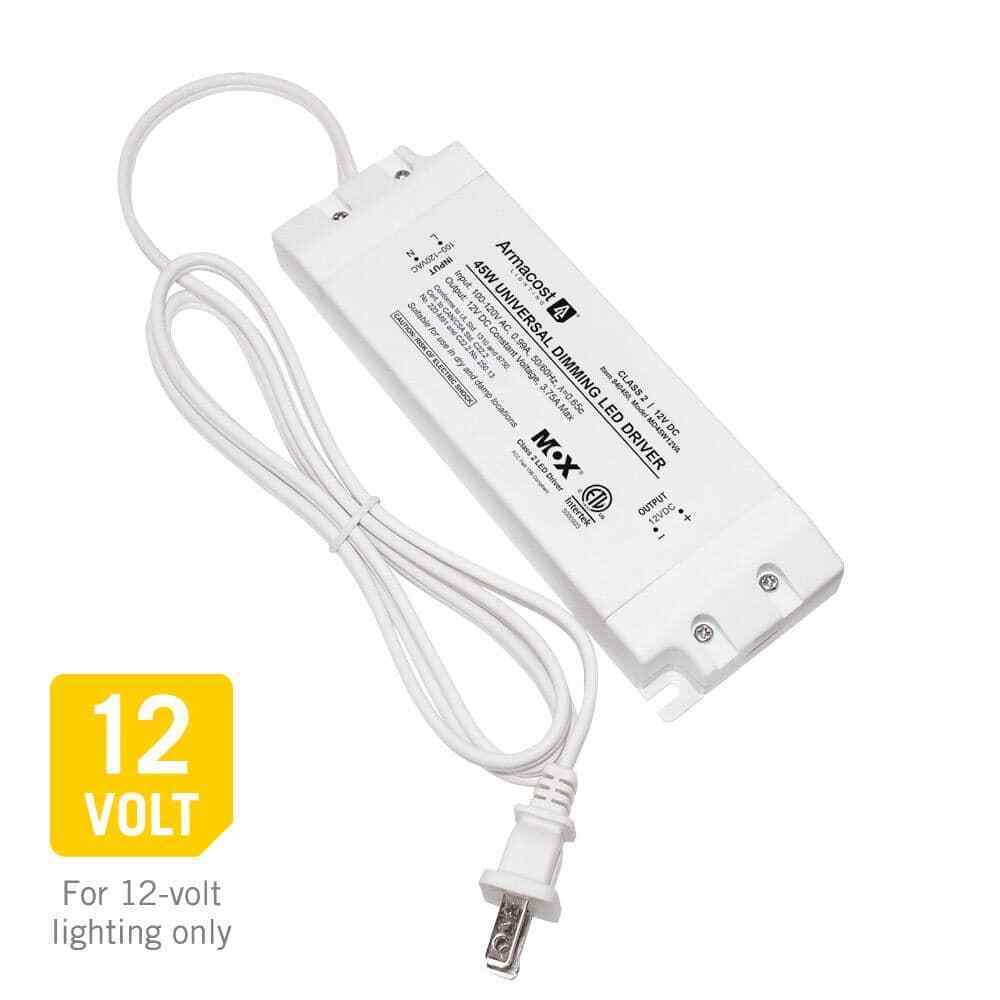

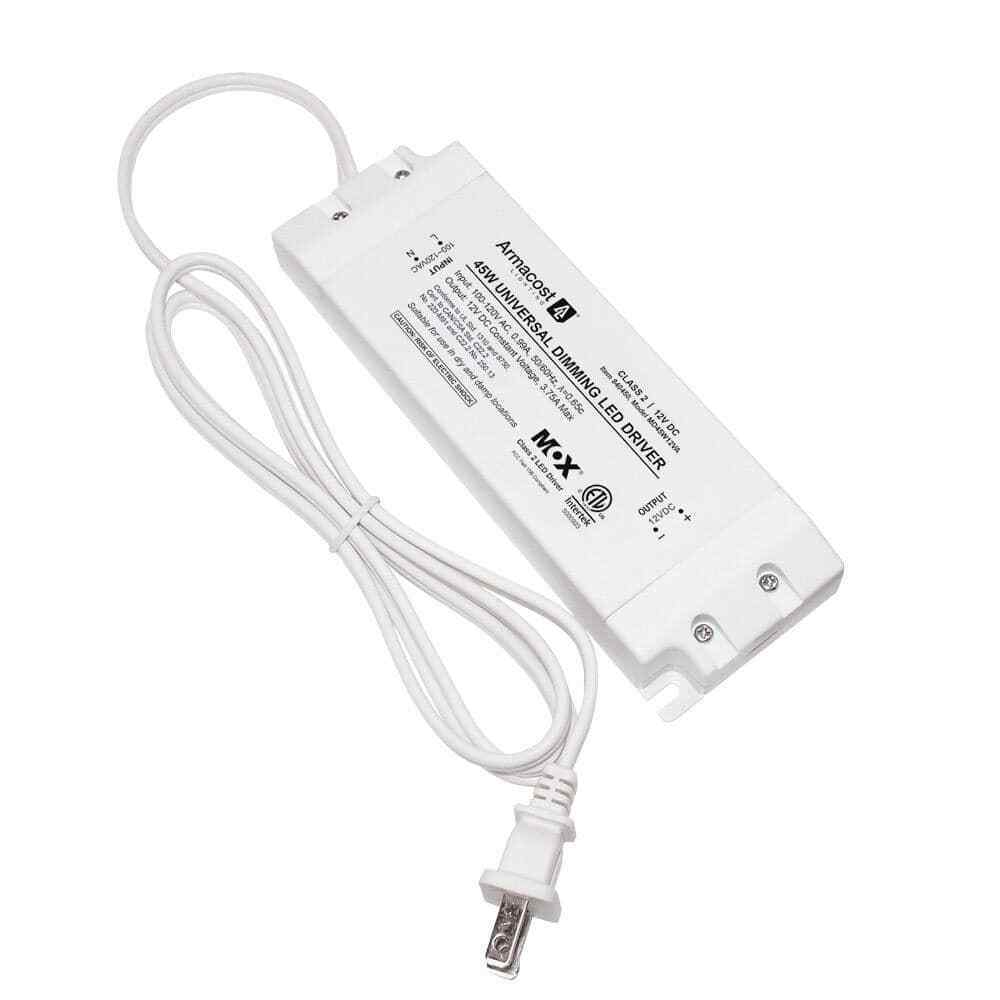

Armacost Lighting's 45-Watt dimmable LED driver provides smooth, fade-to-dark, architectural-quality dimming of all Armacost 12-Volt LED lighting using standard, in-wall AC dimmers. Also works with other manufacturers 12-Volt constant voltage LED lighting that is compatible with PWM dimming. Although virtually all dimmers will work with this Dimmable LED Driver, Armacost Lighting recommends Lutron CL and Leviton IllumaTech Universal Dimmers because of their low end dimming range adjustment.- Expect wide range, flicker-free dimming performance whether powering a 1-Watt LED mini puck light or 45-Watt of ribbon flex pro LED tape lighting
- For large lighting applications, connect multiple dimmable power supplies to a single 120-Volt AC dimmer

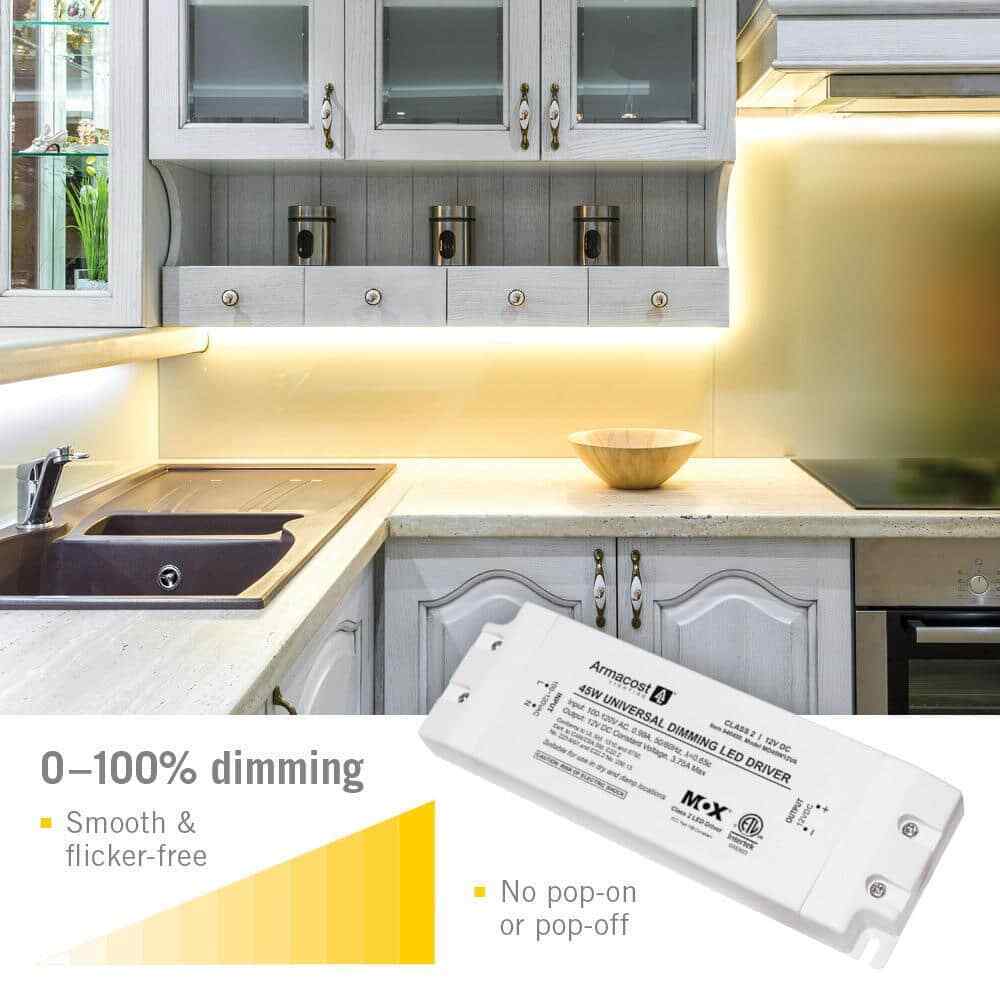

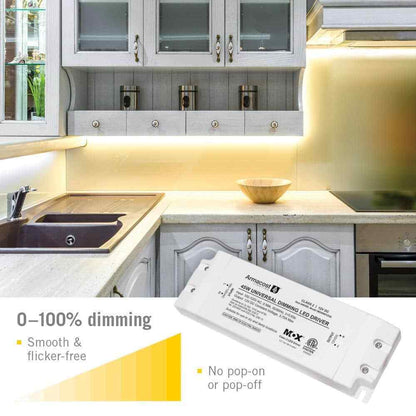

- Microprocessor controlled for smooth fade-on and fade-to-dark performance

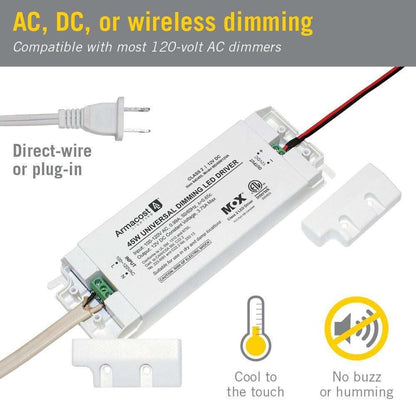

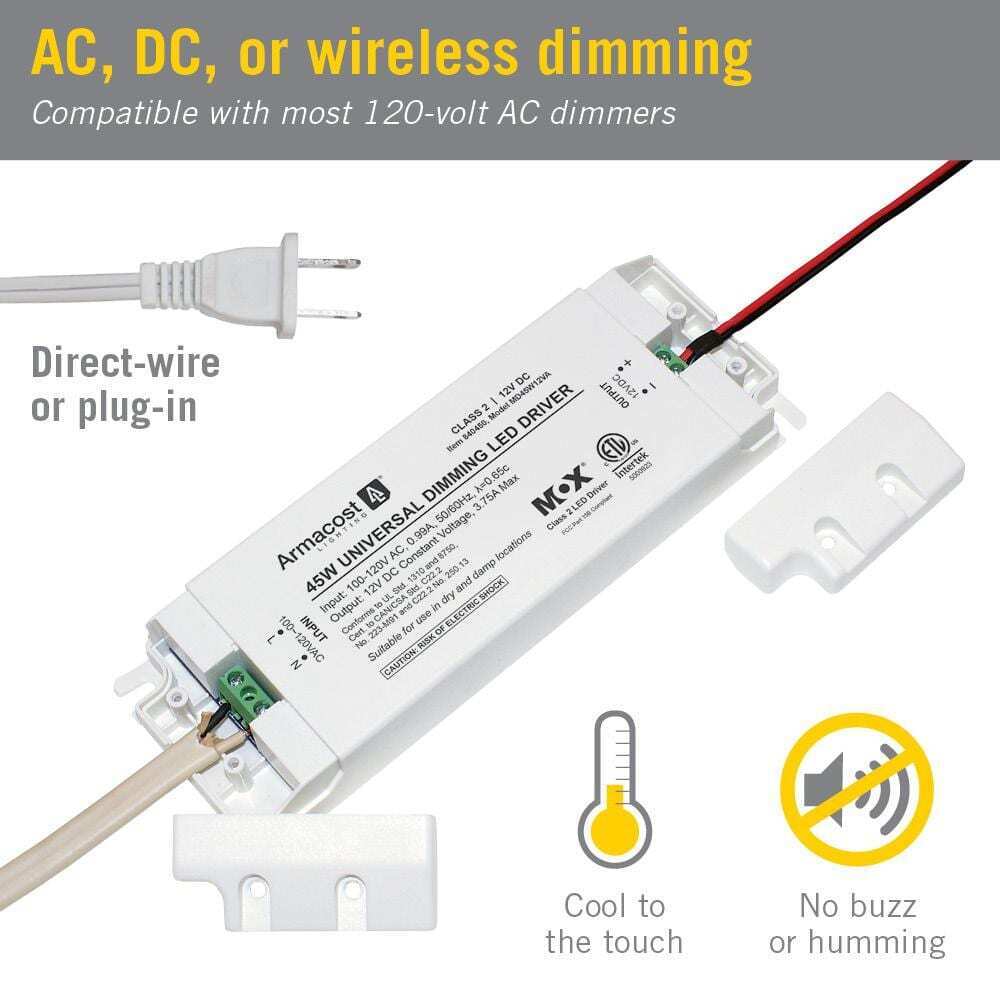

- Wide-range compatibility with all classes of dimmers
- Also compatible with 12-Volt, low-voltage LED dimmers and color controllers
- No de-rating required, load up to 100% of this model's rated 45-Watt capacity

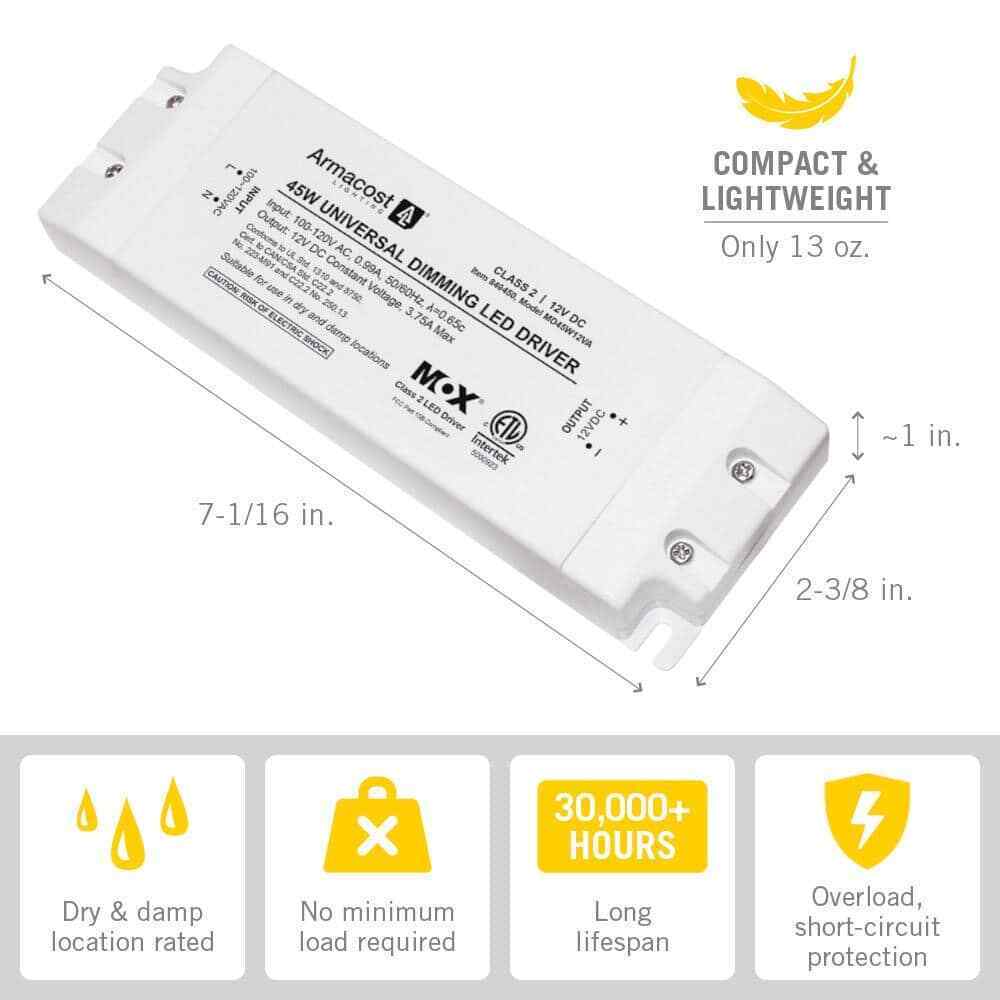

- Full safety shut off protection in case of lighting overload, open circuit, short circuit, over-temperature, or other fault and driver will automatically restart after the fault has been corrected
- Uses class II AC inputs with a fully isolated plastic case, no ground wire is required
- Rated for 30,000 hours when used 8-12 hours a day at full load; expect longer life when dimmed or when using lesser wattage loads
- Input voltage: 100- to 120-Volt AC, 0.99A, 50/60 Hz, =0.65c
- Output: 12-Volt DC constant voltage, 45-Watt, 3.75A maximum
- Class II AC input (2-wire connection, requires no ground)
- Complies with FCC part 15B
- ETL listed for both dry and damp location use
