Description

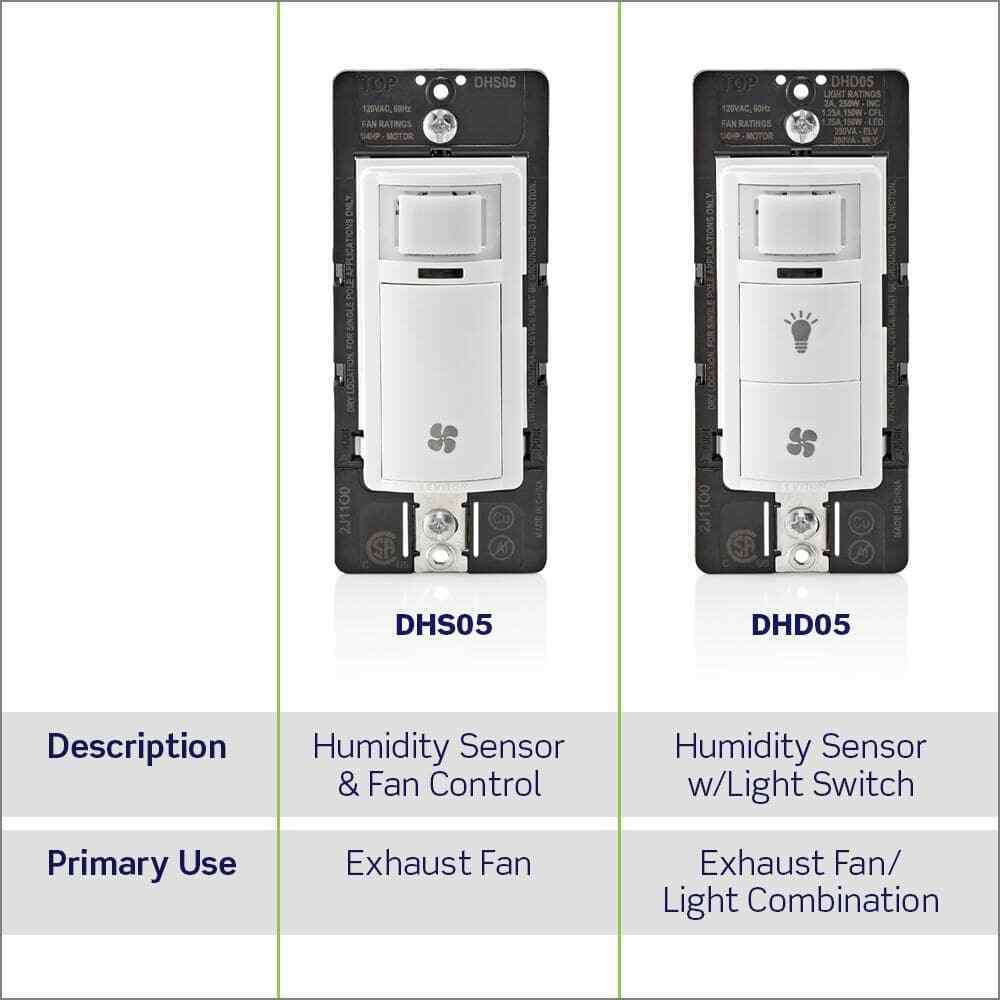

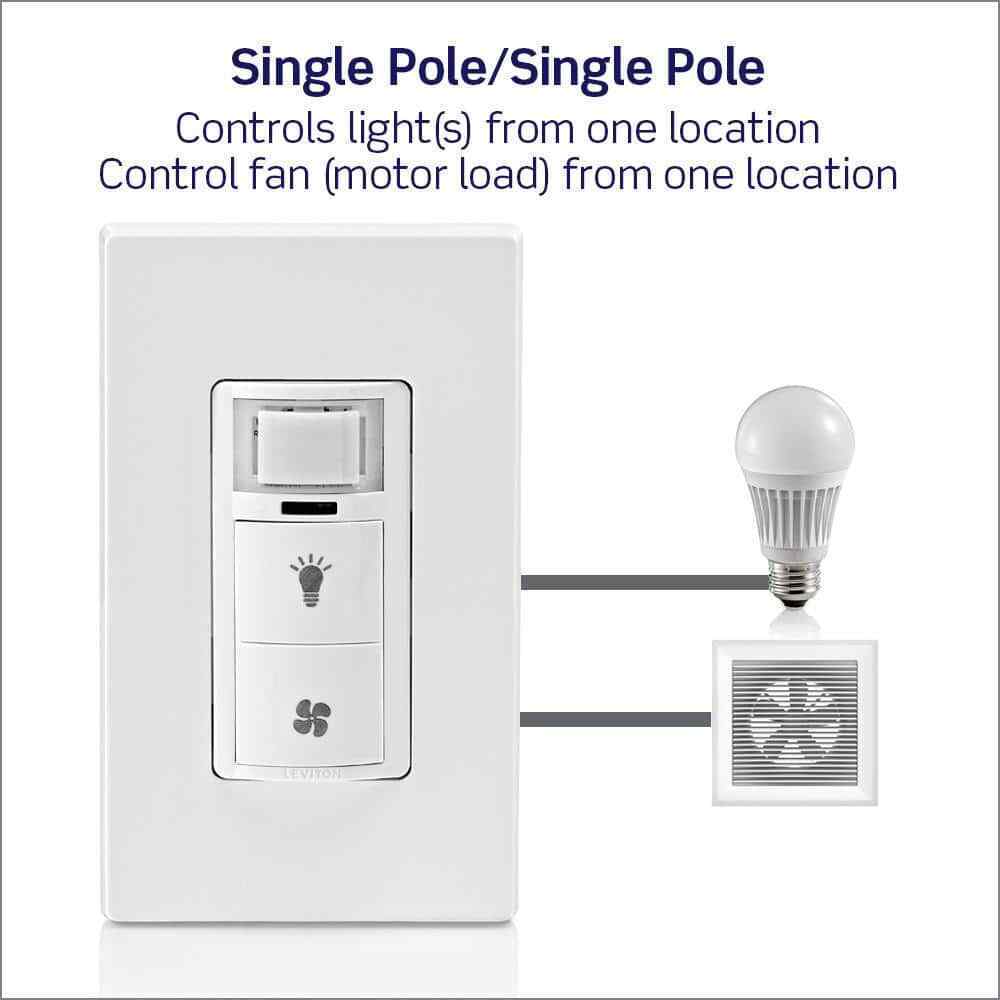

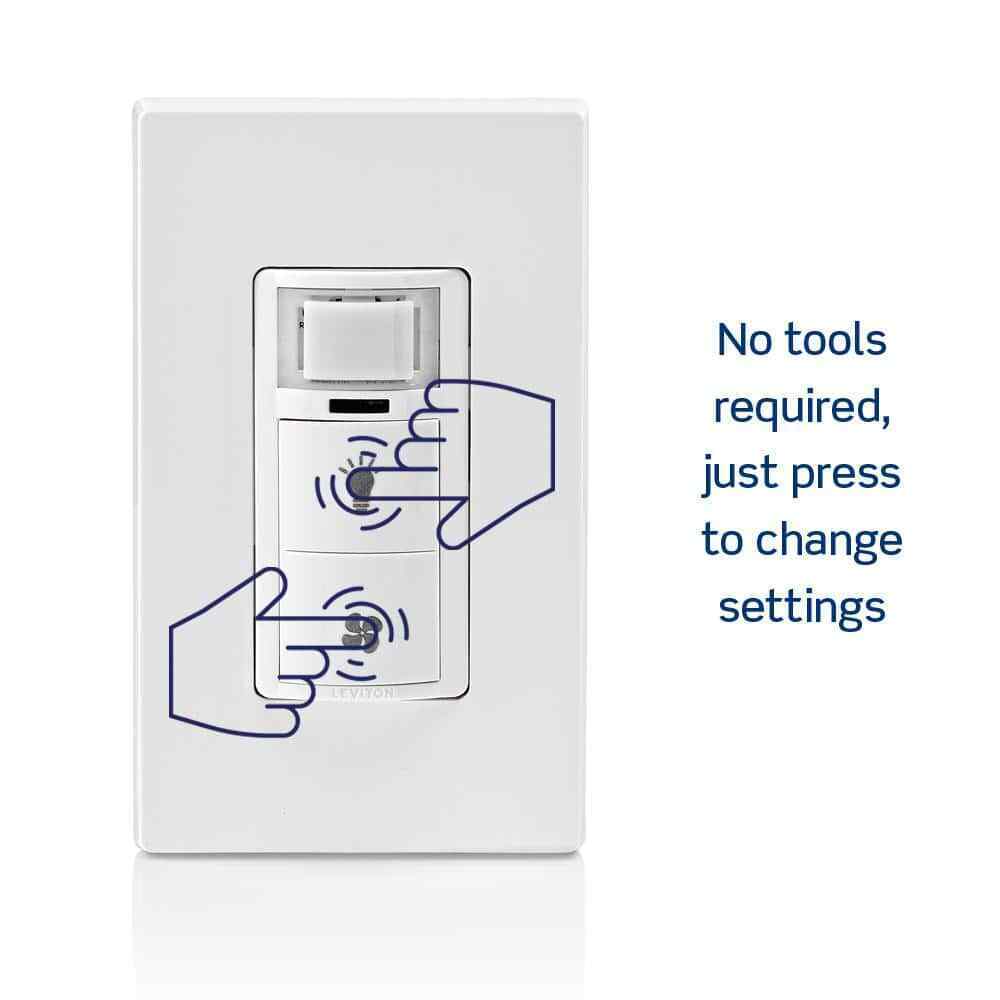

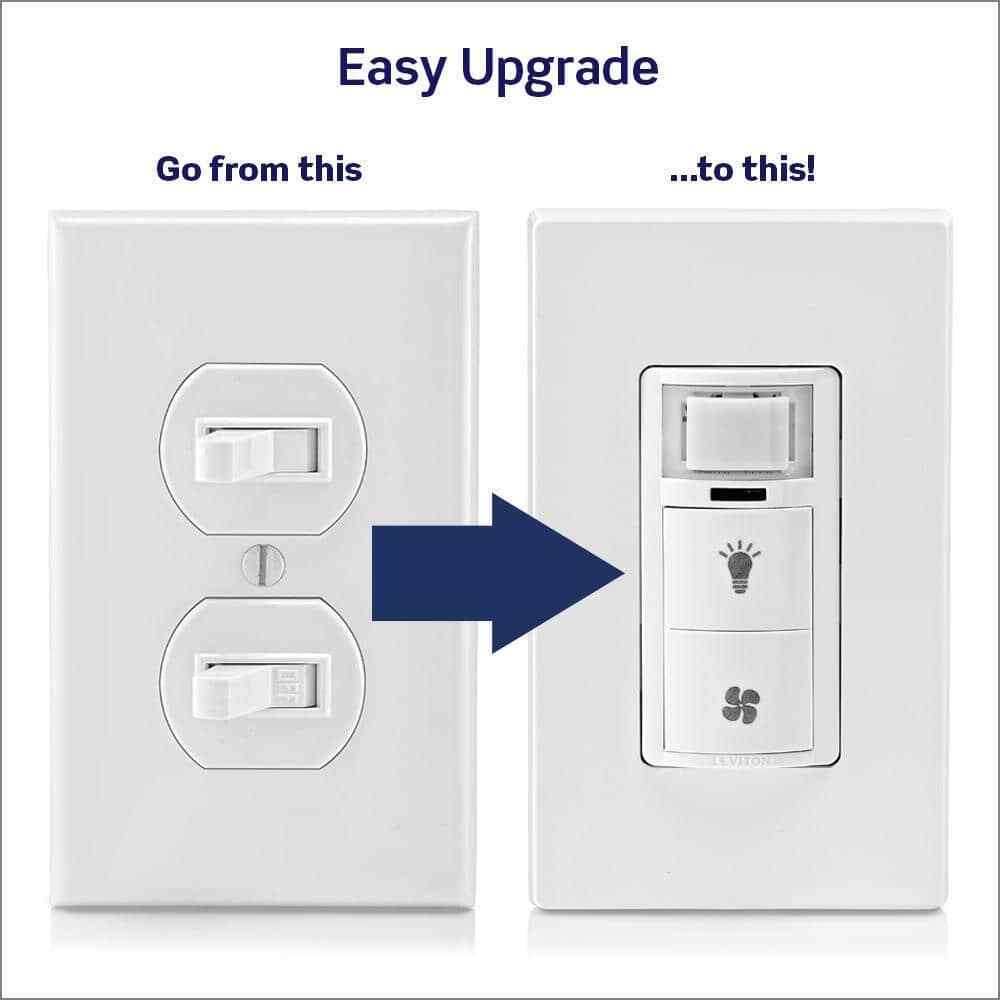

Leviton's DHD05-1LW Decora Humidity Sensor and Fan Control with Separate Light Switch replaces an existing combination switch for separate control of exhaust/ventilation fan and lighting. The humidity sensor detects excess humidity in a room and automatically activates an exhaust or ventilation fan helping to reduce condensation and provide a more comfortable environment. The sensor uses state-of-the-art digital sensing technology to continuously monitor and manage moisture levels in areas of the home prone to humidity like bathrooms, basements, laundry rooms and spas. The separate light switch can be pressed to turn on and off lighting, a towel warmer or a heater. Easy DIY install with slim depth for an easier fit in the wallbox and a green flex sleeve that connects to ground or neutral when the sleeve is removed. User-friendly customization to adjust sensitivity, humidity level and time out settings and easy color change using the DHDKT faceplates available in white, ivory, light almond, gray, black and brown. Use with Decora Wallplate and Decora Plus Screwless Wallplate sold separately.- Replaces a single pole combination switch for separate control of exhaust fan and lighting.
- The humidity sensor detects humidity and automatically turns on and off exhaust/ventilation fan. The separate light switch can be pressed to turn on and off lighting, a towel warmer or heater

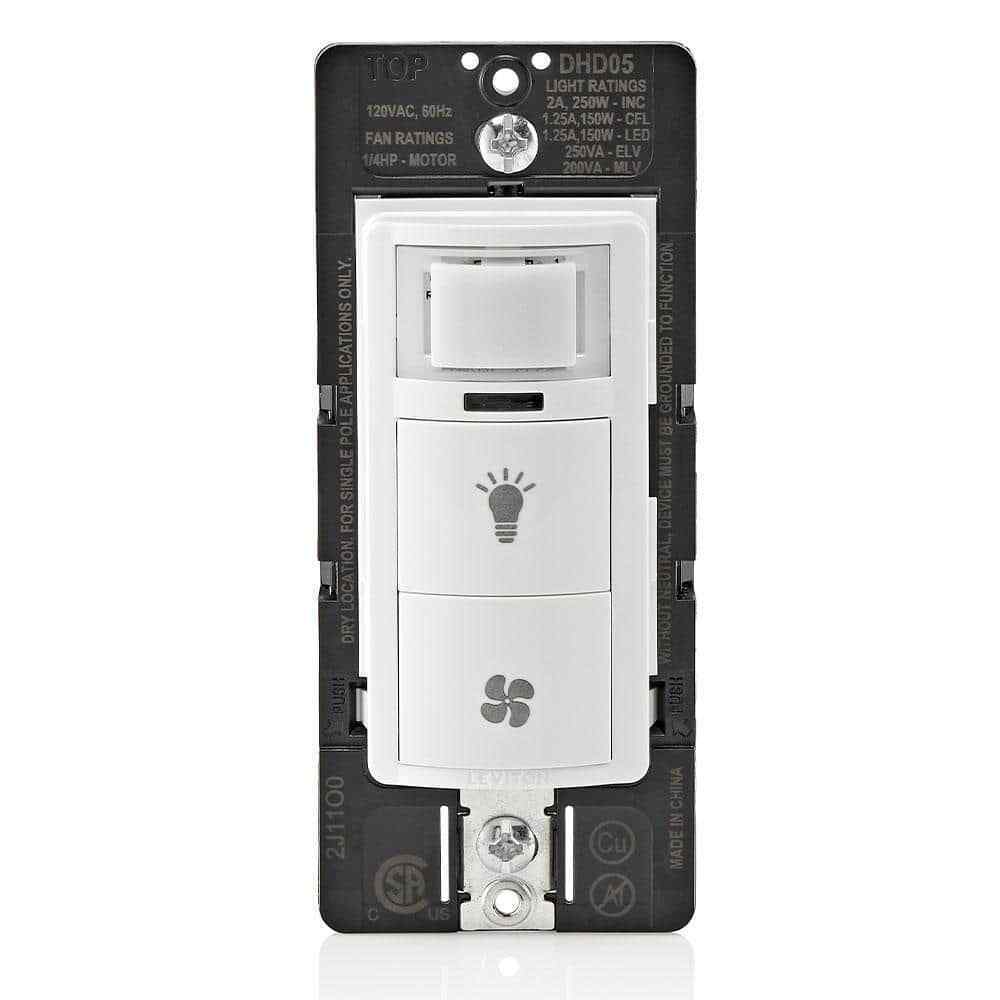

- Fan Load (Blue Wire): 1/4 HP Fan, 300W LED/CFL, 600W Incandescent/Halogen, 400VA Magnetic Low Voltage, 400VA Electronic Low Voltage; Light Load (Red Wire): 150W LED/CFL, 250W Incandescent/Halogen, 200VA Magnetic Low Voltage, 250VA Electronic Low Voltage, 2A Resistive

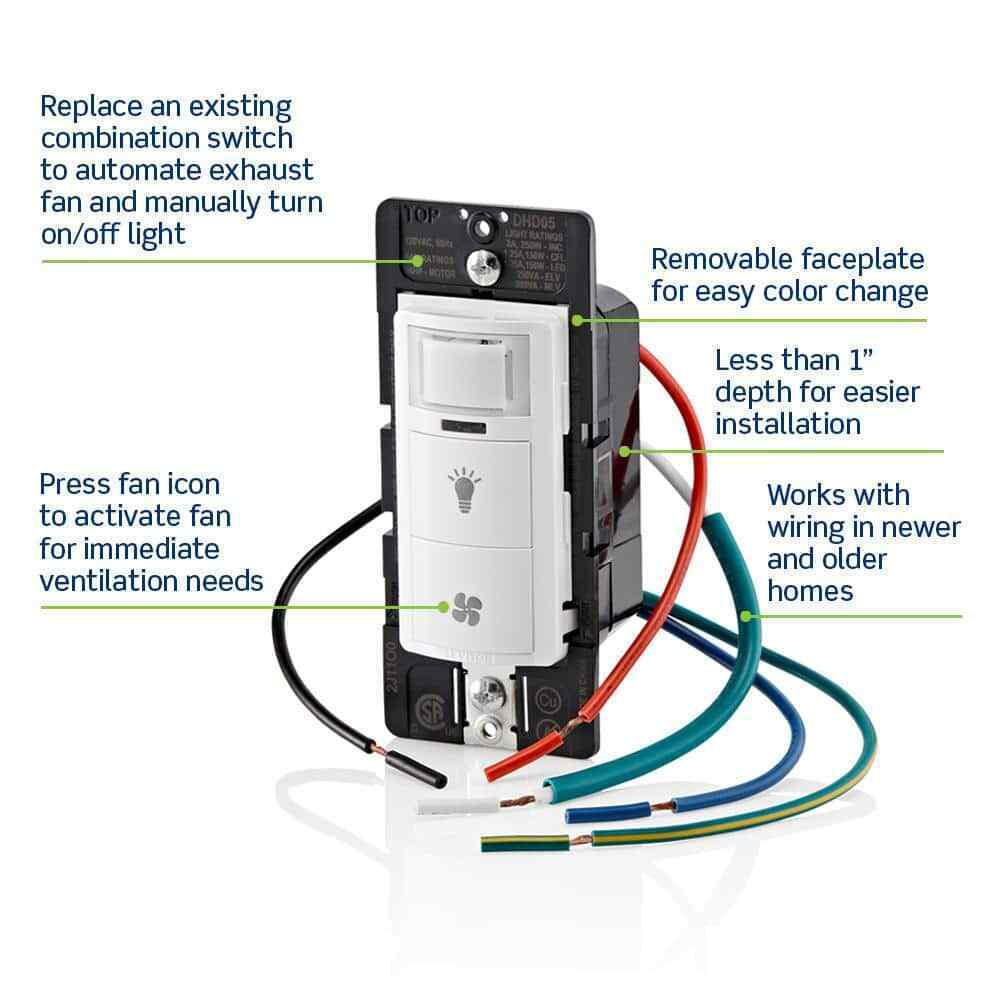

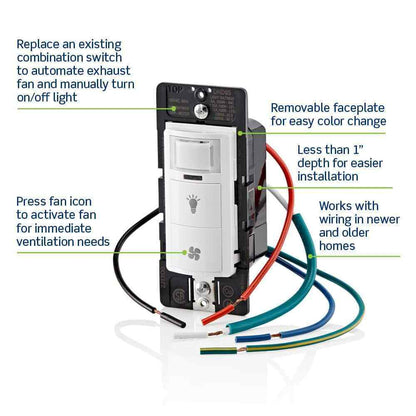

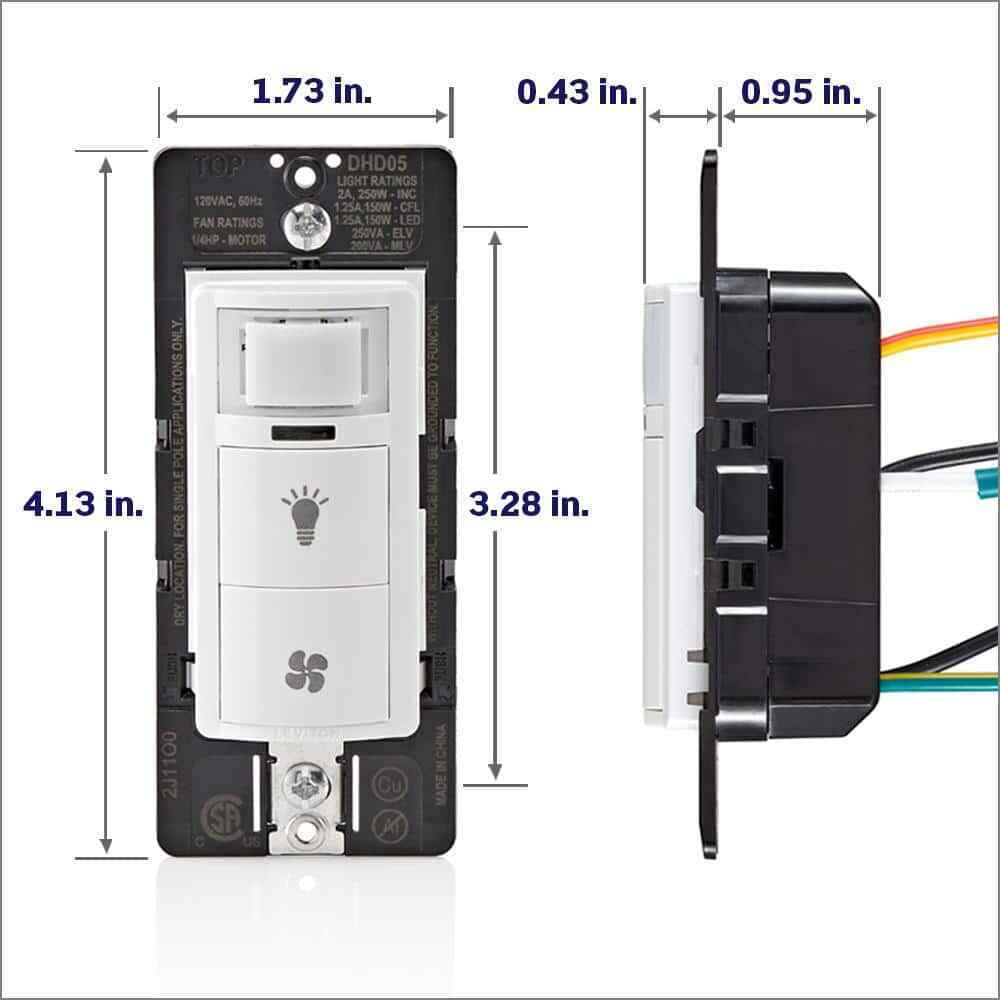

- Shallow design easily fits in the wallbox and lead terminal wires for easier installation without having to bend wires around terminal screws
- Innovative Green Flex Sleeve wires to ground in homes with no neutral wiring or remove the sleeve and connect to a neutral wire if present in the wallbox . A ground wire is required for installation
- Microprocessor control with digital sensing technology
- Zero Cross turn-on technology extends the life of switching relays
- Advanced sensing enhances detection when the room is occupied and minimizes false triggers when unoccupied
- Operating Modes for bath fan, air cycle and humidistat
- Meets CALGREEN, California Title 24 and ASHRAE 62.2 requirements; sensor is equipped with user adjustable humidity range set points to set the minimum humidity level at which the fan will automatically operate
- Automatic ventilation/air cycle mode for continuous operation with hourly pre-set time outs

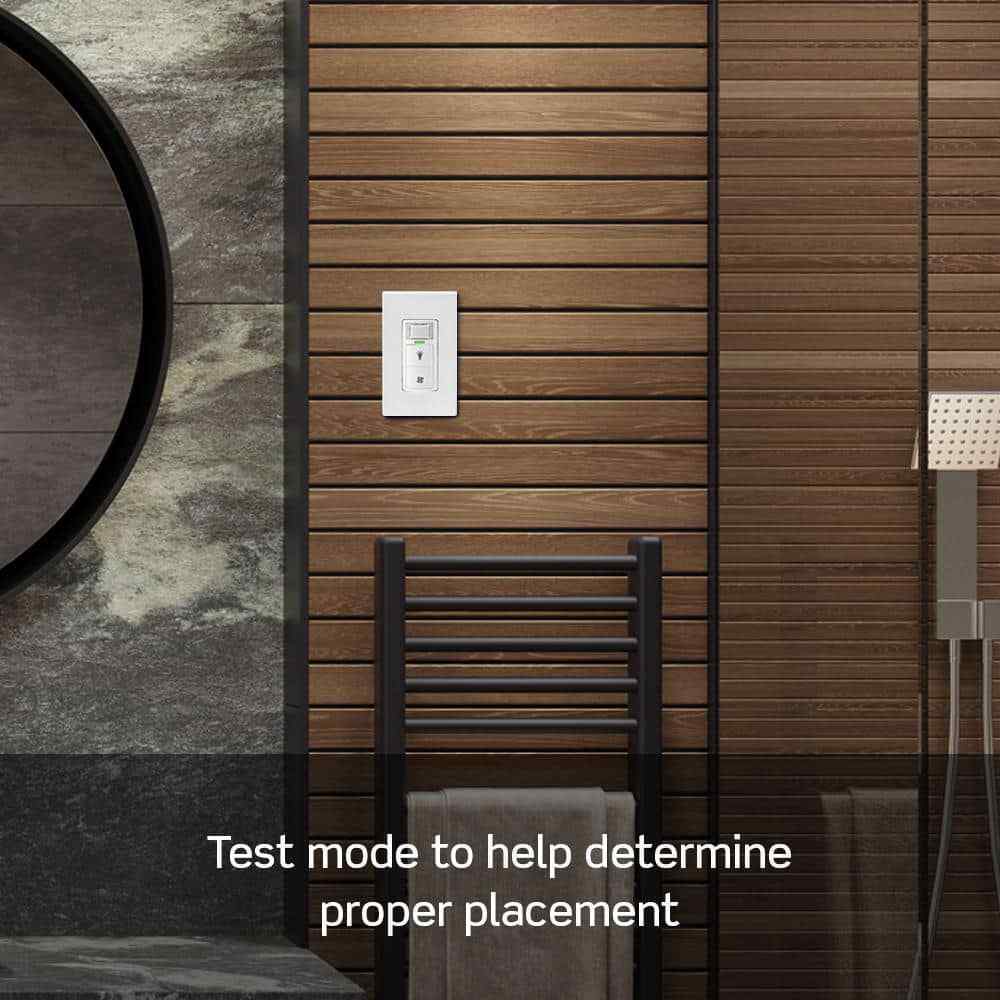

- Test mode to help determine proper sensor placement and setting adjustments that need to be made for optimal operation
- Compatible with Decora and Decora Plus wallplates (sold separately)

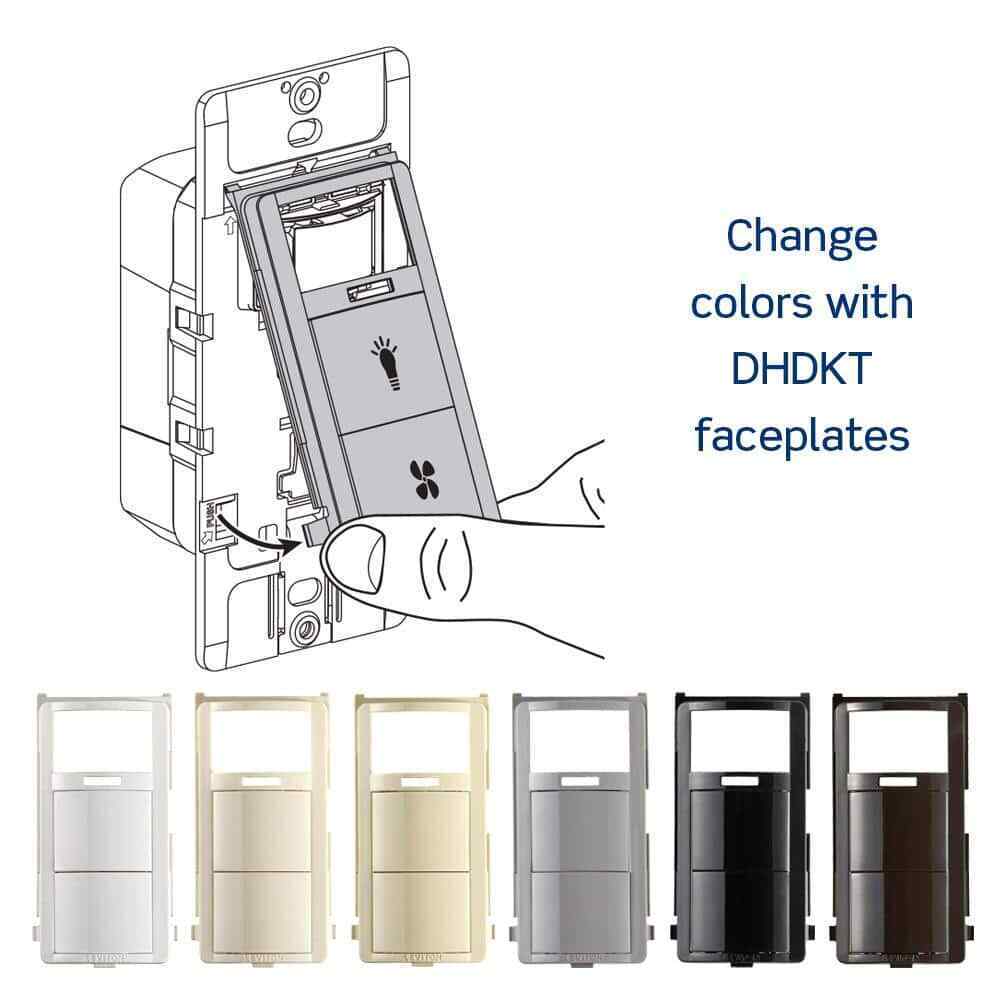

- Change color with DHDKT faceplates available in white, ivory, light almond, gray, black and brown (sold separately)
- Humidity sensors are perfect for bathrooms, basements, laundry rooms, spas and more
